Platform-Specific Information

This Appendix presents the platform-dependent instructions for using GNAT Pro for Rust to build, run, and debug Rust programs. It assumes that INSTALL_DIR is the directory in which the product has been installed.

Native Linux and Native Windows

Introduction

Native Linux and native Windows are targets which come with the Rust Standard Library consisting of:

The targets are identified by the following triples:

AdaCore triple	Rust triple
`x86_64-linux`	`x86_64-unknown-linux-gnu`
`x86_64-windows64`	`x86_64-pc-windows-gnu`

Limitations

The GNAT Pro for Rust products for native Linux and native Windows have no known limitations.

Using GNAT Pro for Rust

sudoku

Overview

We will use the sudoku example located in INSTALL_DIR/share/examples/rust/sudoku to illustrate how to use GNAT Pro for Rust.

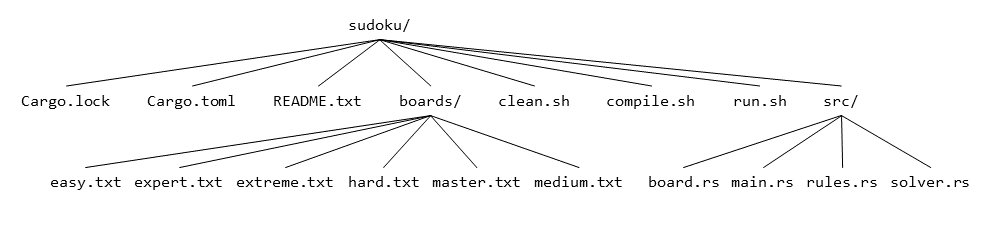

The example demonstrates development with the Rust Standard Library, in particular the organization of source code into modules, the implementation of comparison and formatting traits, the use of simple data structures, and more. The example has the following structure:

Cargo.toml is the manifest file used by cargo. The manifest format is quite powerful as it allows you to specify the identity of your crate, its dependencies, target-specific details, profiles, workspaces, and much more. Consult The Manifest Format for further details.

Directory boards contains sample input boards.

clean.sh, compile.sh, and run.sh are simple helper scripts which clean up the build environment, compile, and run the example, respectively.

Directory src contains the source code of the example, split into several modules.

Building

Execute the following command to build the example:

$ cargo build

cargo is the Rust package manager, the entry point of GNAT Pro for Rust. It offers an extensive set of commands and configurations. Consult Cargo Commands and Cargo Reference for further details.

Running

Execute the following command to run the example:

$ cargo run -- boards/<board_of_your_choice>

Debugging

Start rust-gdb by executing:

$ rust-gdb --args target/debug/sudoku boards/<board_of_your_choice>

Place a breakpoint on solve_one, run the program, and observe the value of parameter column at the breakpoint by executing:

(gdb) break sudoku::solver::solve_one
(gdb) run
(gdb) print column

Quit rust-gdb by executing:

(gdb) quit

mouse-in-maze

Overview

We will use the mouse-in-maze example located in INSTALL_DIR/share/examples/rust/mouse-in-maze to illustrate how to use GNAT Pro for Rust and GNAT Pro for Ada for mixed language development.

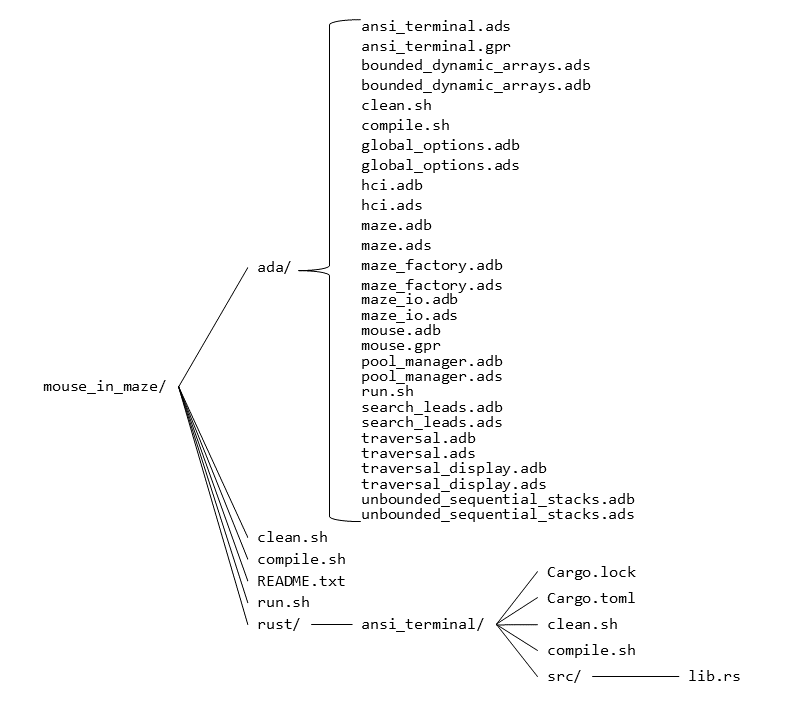

The example consists of an Ada main and a Rust library. The example has the following structure:

../_images/platform_specific-mouse_in_maze.png

Directory ada contains the sources for the Ada main. File ada/ansi_terminal.gpr is the GPR project for the Rust library. File ada/mouse.gpr is the GPR project for the Ada main.

Directory rust contains the sources for the Rust library.

clean.sh, compile.sh, and run.sh are simple helper scripts which clean up the build environment, compile, and run the example, respectively.

Building

Navigate to directory INSTALL_DIR/share/examples/rust/mouse-in-maze/rust/ansi_terminal and execute the following command to build the Rust library:

$ cargo build --release

Navigate to directory INSTALL_DIR/share/examples/rust/mouse-in-maze/ada and execute the following command to build the Ada main:

$ gprbuild -P mouse.gpr --target=<target>

where <target> is x86_64-linux for native Linux and x86_64-windows64 for native Windows.

Running

Execute the following command to run the example:

$ ./mouse -w 10 -h 10

AArch64 Bare Metal

Introduction

AArch64 Bare Metal is a no_std target which comes with the following Rust libraries:

alloc
core

The target is identified by the following triples:

AdaCore triple	Rust triple
`aarch64-elf`	`aarch64-unknown-none`

Limitations

GNAT Pro for Rust for AArch64 Bare Metal has no known limitations.

Using GNAT Pro for Rust

data_structures

Overview

We will use the data_structures example located in INSTALL_DIR/share/examples/rust/data_structures to illustrate how to use GNAT Pro for Rust.

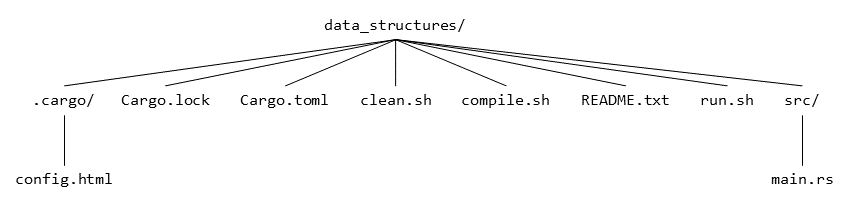

This example demonstrates no_std development, in particular the use of FFI (Foreign Function Interface) to interface with C code, the definition of a global allocator in order to use heap-allocated data structures, and the handling of panics. The example has the following structure:

../_images/platform_specific-data_structures.png

.cargo/config.toml is the configuration file used by cargo. The configuration format allows you to set environment details, HTTP and network details, patch application specifics, define registries, and more. Consult Configuration for further details.

Cargo.toml is the manifest file used by cargo. The manifest format is quite powerful as it allows you to specify the identity of your crate, its dependencies, target-specific details, profiles, workspaces, and much more. Consult The Manifest Format for further details.

clean.sh, compile.sh, and run.sh are simple helper scripts which clean up the build environment, compile, and run the example, respectively.

src/main.rs contains the source code of the example.

Prerequisites

The example is tailored for the ZynqMP BSP and GNATemulator, both distributed with GNAT Pro for Bare Metal.

You can also build the example with your own BSP and linker script, and run it within your own emulator or physical board.

Configuration

Before building the example, you will need to provide the BSP and linker script details to cargo. Edit file INSTALL_DIR/share/examples/rust/data_structures/.cargo/config.toml and follow the instructions in the comments.

Building

Execute the following command to build the example:

$ cargo build --target=aarch64-unknown-none

cargo is the Rust package manager, the entry point of GNAT Pro for Rust. It offers an extensive set of commands and configurations. Consult Cargo Commands and Cargo Reference for further details.

Running

Assuming you are using ZynqMP BSP and GNATemulator, execute the following command to run the example:

$ aarch64-elf-gnatemu target/aarch64-unknown-none/debug/data_structures

Debugging

Debugging the example requires two terminals which we will refer to as client and server terminals.

In the server terminal, run the example by executing:

$ aarch64-elf-gnatemu -g target/aarch64-unknown-none/debug/data_structures

In the client terminal, register aarch64-elf-gdb with rust-gdb by executing:

$ export RUST_GDB=aarch64-elf-gdb

rust-gdb is a wrapper around gdb which ensures proper path resolution and substitution within the debugger.

Start rust-gdb by executing:

$ rust-gdb target/aarch64-unknown-none/debug/data_structures

Connect to the example running in the server terminal by executing:

(gdb) target remote localhost:1234

Place a breakpoint on main.rs, continue, and print the value of variable words by executing:

(gdb) break main.rs:70
(gdb) continue
(gdb) print words

Quit rust-gdb by executing:

(gdb) quit

arithmetic

Overview

We will use the arithmetic example located in INSTALL_DIR/share/examples/rust/arithmetic to illustrate how to use GNAT Pro for Rust and GNAT Pro for Ada for mixed language development.

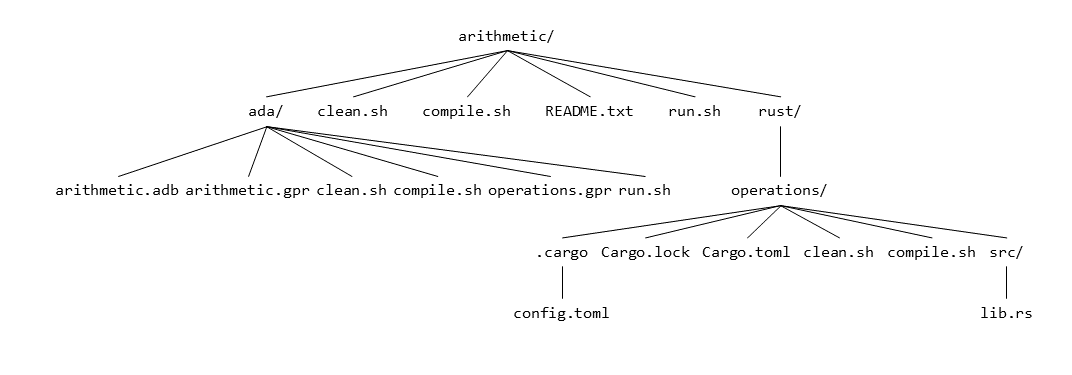

The example consists of an Ada main and a Rust library. The example has the following structure:

../_images/platform_specific-arithmetic.png

Directory ada contains the sources for the Ada main. File ada/operations.gpr is the GPR project for the Rust library. File ada/arithmetic.gpr is the GPR project for the Ada main.

Directory rust contains the sources for the Rust library.

clean.sh, compile.sh, and run.sh are simple helper scripts which clean up the build environment, compile, and run the example, respectively.

Prerequisites

The example is tailored for the ZynqMP BSP and GNATemulator, both distributed with GNAT Pro for Bare Metal.

You can also build the example with your own BSP and linker script, and run it within your own emulator or physical board.

Configuration

Before building the example, you will need to provide the BSP and linker script details to cargo. Edit file INSTALL_DIR/share/examples/rust/arithmetic/rust/operations/.cargo/config.toml and follow the instructions in the comments.

In addition, you will need to specify the Ada runtime to use. Edit file INSTALL_DIR/share/examples/rust/arithmetic/ada/arithmetic.gpr and substitute <runtime> with light-zynqmp for example.

Building

Navigate to directory INSTALL_DIR/share/examples/rust/arithmetic/rust/operations and execute the following command to build the Rust library:

$ cargo build --release --target=aarch64-unknown-none

Navigate to directory INSTALL_DIR/share/examples/rust/arithmetic/ada and execute the following command to build the Ada main:

$ gprbuild -P arithmetic.gpr

Running

Assuming you are using ZynqMP BSP and GNATemulator, execute the following command to run the example:

$ aarch64-elf-gnatemu arithmetic

AArch64 FastOS

Introduction

AArch64 FastOS is a target which comes with the Rust Standard Library consisting of:

The target is identified by the following triples:

AdaCore triple	Rust triple
`aarch64-fastos`	`aarch64-thales-fastos`

Limitations

GNAT Pro for Rust for AArch64 FastOS has the following limitations:

Missing Features

The following features are either not present in GNAT Pro for Rust for AArch64 FastOS, or employ a non-functional implementation which panics or returns an error.

File System

Ownership

Feature	Comment
`std::fs::fchown`	No `fchown` in FastOS `libc`
`std::fs::lchown`	No `lchown` in FastOS `libc`

Paths

Feature	Comment
`std::fs::canonicalize`	No `realpath` in FastOS `libc`
`std::fs::chroot`	No `chroot` in FastOS `libc`

Symbolic links

Feature	Comment
`std::fs::FileType::is_symlink`	No symlink support on FastOS
`std::fs::read_link`	No symlink support on FastOS
`std::fs::soft_link`	No symlink support on FastOS

Synchronization

Feature	Comment
`std::fs::File::sync_all`	No `fsync` in FastOS `libc`
`std::fs::FIle::sync_data`	No `fdatasync` in FastOS `libc`

Timestamps

Feature	Comment
`std::fs::File::set_times`	No `futimens` in FastOS `libc`

Vectored IO

Feature	Comment
`std::fs::File::read_at`	No `pread` in FastOS `libc`
`std::fs::File::read_vectored_at`	No `preadv` in FastOS `libc`
`std::fs::File::write_at`	No `pwrite` in FastOS `libc`
`std::fs::File::write_vectored_at`	No `pwritev` in FastOS `libc`

Networking

Host lookup

Feature	Comment
`std::net::socket_addr::ToSocketAddrs`	No `getaddrinfo` in FastOS `libc`

IPv6

FastOS lacks support for IPv6. The data structures which represent an IPv6 address are present in the Rust Standard Library since they do not depend on FastOS libc.

Socket options

Feature	Comment
`std::net::tcp::TcpStream::linger`	No `SO_LINGER` in FastOS `libc`
`std::net::tcp::TcpStream::read_timeout`	No `SO_RCVTIMEO` in FastOS `libc`
`std::net::tcp::TcpStream::set_linger`	No `SO_LINGER` in FastOS `libc`
`std::net::tcp::TcpStream::set_read_timeout`	No `SO_RCVTIMEO` in FastOS `libc`
`std::net::tcp::TcpStream::set_write_timeout`	No `SO_SNDTIMEO` in FastOS `libc`
`std::net::tcp::TcpStream::write_timeout`	No `SO_SNDTIMEO` in FastOS `libc`
`std::net::udp::UdpSocket::read_timeout`	No `SO_RCVTIMEO` in FastOS `libc`
`std::net::udp::UdpSocket::set_read_timeout`	No `SO_RCVTIMEO` in FastOS `libc`
`std::net::udp::UdpSocket::set_write_timeout`	No `SO_SNDTIMEO` in FastOS `libc`
`std::net::udp::UdpSocket::write_timeout`	No `SO_SNDTIMEO` in FastOS `libc`

UNIX sockets

Feature	Comment
`std::os::unix::net::*`	No UNIX sockets on FastOS

Processes

Exit codes

Feature	Comment
`std::os::unix::process::ExitStatus::continued`	No `WIFCONTINUED` in FastOS `libc`
`std::os::unix::process::ExitStatus::core_dumped`	No `WCOREDUMP` in FastOS `libc`
`std::os::unix::process::ExitStatus::stopped_signal`	No `WIFSTOPPED`, `WTSOPSIG` in FastOS `libc`

Known Issues

The path returned by std::env::current_exe may be relative, depending on the value of argv[0].
std::f32::gamma and std::f64::gamma return +INF instead of -INF for -0.0.
Using std::fs::File::set_len to truncate a file to a smaller length, then writing to the file without changing the cursor will not fill the intermediate characters with zeroes.
std::net::UdpSocket::peer_addr returns the 0.0.0.0 address instead of std::io::ErrorKind::NotConnected if no peer is connected to the socket.
std::process::Command::spawn does not function properly.
Building shared libraries is not supported.
Backtraces are not symbolized when unwinding during a panic.
Missing stack overflow handler.

Using GNAT Pro for Rust

sudoku

Overview

We will use the sudoku example located in INSTALL_DIR/share/examples/rust/sudoku to illustrate how to use GNAT Pro for Rust.

The example demonstrates development with the Rust Standard Library, in particular organization of source code into modules, implementation of comparison and formatting traits, use of simple data structures, and more. The example has the following structure:

Cargo.toml is the manifest file used by cargo. The manifest format is quite powerful as it allows you to specify the identity of your crate, its dependencies, target-specific details, profiles, workspaces, and much more. Consult The Manifest Format for further details.

Directory boards contains sample input boards.

clean.sh, compile.sh, and run.sh are simple helper scripts which clean up the build environment, compile, and run the example, respectively.

Directory src contains the source code of the example, split into several modules.

Prerequisites

Ensure that the AArch64 FastOS kernel installed, and that ENV_PREFIX points to the directory which contains it.

Building

Execute the following command to build the example:

$ cargo build --target=aarch64-thales-fastos

cargo is the Rust package manager, the entry point of GNAT Pro for Rust. It offers an extensive set of commands and configurations. Consult Cargo Commands and Cargo Reference for further details.

Running

Assuming you are using a physical board, first copy the executable from INSTALL_DIR/share/examples/rust/sudoku/target/aarch64-thales-fastos/debug/sudoku to your board. In addition, copy a few sudoku boards from directory boards to your board.

Execute the following command to run the example:

$ ./sudoku <board_of_your_choice>

Debugging

Debugging the example requires two terminals which we will refer to as client and server terminals.

Assuming you are using a physical board which is already provisioned with a gdb server, start the server terminal on the physical board. In the server terminal, run the example by executing:

$ <gdb-server> :1234 --args sudoku <board_of_your_choice>

where gdb-server is your gdb server executable.

In the client terminal, register aarch64-thales-fastos-gdb with rust-gdb by executing:

$ export RUST_GDB=aarch64-thales-fastos-gdb

rust-gdb is a wrapper around gdb which ensures proper path resolution and substitution within the debugger.

Start rust-gdb by executing:

$ rust-gdb target/aarch64-thales-fastos/debug/sudoku

Connect to the example running in the server terminal by executing:

(gdb) target remote <physical_board_address>:1234

Place a breakpoint on solve_one, continue, and observe the value of parameter column by executing:

(gdb) break sudoku::solver::solve_one
(gdb) continue
(gdb) print column

Quit rust-gdb by executing:

(gdb) quit

mouse-in-maze

Overview

We will use the mouse-in-maze example located in INSTALL_DIR/share/examples/rust/mouse-in-maze to illustrate how to use GNAT Pro for Rust and GNAT Pro for Ada for mixed language development.

The example consists of an Ada main and a Rust library. The example has the following structure:

Directory ada contains the sources for the Ada main. File ada/ansi_terminal.gpr is the GPR project for the Rust library. File ada/mouse.gpr is the GPR project for the Ada main.

Directory rust contains the sources for the Rust library.

clean.sh, compile.sh, and run.sh are simple helper scripts which clean up the build environment, compile, and run the example, respectively.

Prerequisites

Ensure that the AArch64 FastOS kernel installed, and that ENV_PREFIX points to the directory which contains it.

Configuration

Before building the example, edit file INSTALL_DIR/share/examples/rust/mouse-in-maze/ada/mouse.gpr and change x86_64-linux to aarch64-fastos.

Building

Navigate to directory INSTALL_DIR/share/examples/rust/mouse-in-maze/rust/ansi_terminal and execute the following command to build the Rust library:

$ cargo build --release --target=aarch64-thales-fastos

Navigate to directory INSTALL_DIR/share/examples/rust/mouse-in-maze/ada and execute the following command to build the Ada main:

$ gprbuild -P mouse.gpr

Running

Assuming you are using a physical board, first copy the executable from directory INSTALL_DIR/share/examples/rust/mouse-in-maze/ada to your board.

Execute the following command to run the example:

$ ./mouse -w 10 -h 10

AArch64 Linux

Introduction

AArch64 Linux is a target which comes with the Rust Standard Library consisting of:

The target is identified by the following triples:

AdaCore triple	Rust triple
`aarch64-linux`	`aarch64-unknown-linux-gnu`

Limitations

GNAT Pro for Rust for AArch64 Linux has no known limitations.

Using GNAT Pro for Rust

sudoku

Overview

We will use the sudoku example located in INSTALL_DIR/share/examples/rust/sudoku to illustrate how to use GNAT Pro for Rust.

The example demonstrates development with the Rust Standard Library, in particular organization of source code into modules, implementation of comparison and formatting traits, use of simple data structures, and more. The example has the following structure:

Cargo.toml is the manifest file used by cargo. The manifest format is quite powerful as it allows you to specify the identity of your crate, its dependencies, target-specific details, profiles, workspaces, and much more. Consult The Manifest Format for further details.

Directory boards contains sample input boards.

clean.sh, compile.sh, and run.sh are simple helper scripts which clean up the build environment, compile, and run the example, respectively.

Directory src contains the source code of the example, split into several modules.

Prerequisites

Ensure that the AArch64 Linux system libraries are installed, and that ENV_PREFIX points to the directory which contains them.

Building

Execute the following command to build the example:

$ cargo build --target=aarch64-unknown-linux-gnu

cargo is the Rust package manager, the entry point of GNAT Pro for Rust. It offers an extensive set of commands and configurations. Consult Cargo Commands and Cargo Reference for further details.

Running

Assuming you are using a physical board, first copy the executable from INSTALL_DIR/share/examples/rust/sudoku/target/aarch64-unknown-linux-gnu/debug/sudoku to your board. In addition, copy a few sudoku boards from directory boards to your board.

Execute the following command to run the example:

$ ./sudoku <board_of_your_choice>

Debugging

Debugging the example requires two terminals which we will refer to as client and server terminals.

Assuming you are using a physical board, first copy INSTALL_DIR/bin/aarch64-linux-gnu-gdbserver to your board.

Start the server terminal on the physical board. In the server terminal, run the example by executing:

$ aarch64-linux-gnu-gdbserver :1234 --args sudoku <board_of_your_choice>

In the client terminal, register aarch64-linux-gnu-gdb with rust-gdb by executing:

$ export RUST_GDB=aarch64-linux-gnu-gdb

rust-gdb is a wrapper around gdb which ensures proper path resolution and substitution within the debugger.

Start rust-gdb by executing:

$ rust-gdb target/aarch64-unknown-linux-gnu/debug/sudoku

Connect to the example running in the server terminal by executing:

(gdb) target remote <physical_board_address>:1234

Place a breakpoint on solve_one, continue, and observe the value of parameter column by executing:

(gdb) break sudoku::solver::solve_one
(gdb) continue
(gdb) print column

Quit rust-gdb by executing:

(gdb) quit

mouse-in-maze

Overview

We will use the mouse-in-maze example located in INSTALL_DIR/share/examples/rust/mouse-in-maze to illustrate how to use GNAT Pro for Rust and GNAT Pro for Ada for mixed language development.

The example consists of an Ada main and a Rust library. The example has the following structure:

Directory ada contains the sources for the Ada main. File ada/ansi_terminal.gpr is the GPR project for the Rust library. File ada/mouse.gpr is the GPR project for the Ada main.

Directory rust contains the sources for the Rust library.

clean.sh, compile.sh, and run.sh are simple helper scripts which clean up the build environment, compile, and run the example, respectively.

Prerequisites

Ensure that the AArch64 Linux system libraries are installed, and that ENV_PREFIX points to the directory which contains them.

Building

Navigate to directory INSTALL_DIR/share/examples/rust/mouse-in-maze/rust/ansi_terminal and execute the following command to build the Rust library:

$ cargo build --release --target=aarch64-unknown-linux-gnu

Navigate to directory INSTALL_DIR/share/examples/rust/mouse-in-maze/ada and execute the following command to build the Ada main:

$ gprbuild -P mouse.gpr --target=aarch64-linux

Running

Assuming you are using a physical board, first copy the executable from directory INSTALL_DIR/share/examples/rust/mouse-in-maze/ada to your board.

Execute the following command to run the example:

$ ./mouse -w 10 -h 10
