1.2. Specifying Units Of Interest

This chapter describes the means to convey the set of units on which coverage should be assessed, which we commonly refer to as the units of interest.

The first opportunity to do so is at gnatcov instrument time, with GPR project file oriented command line switches possibly associated with coverage specific attributes within project files. This step controls which units are instrumented to track coverage to begin with. It also needs visibility over the main subprogram(s) as they require special processing to trigger the calls dumping coverage data when a program terminates.

The use of such GPR based mechanisms is also allowed at gnatcov coverage time to further refine the focus of reports or coverage checkpoints. Another mechanism is available at this point, with lower level command line switches letting users provide lists of files holding SCO definitions for the units of interest, where one such file is produced per unit by the gnatcov instrument command. When both obligation files and project file options are on the command line, the former prevail and the project files are only used for switches or the determination of the target and runtime configuration.

Regardless of how units of interest were requested, the actual list of units for which a report is produced can be displayed with the --dump-units-to option of the gnatcov coverage command. This also displays the list of individually ignored source files for each unit, controlled by the --ignore-source-files switch.

1.2.1. Using project files (-P, --projects, --units)

The simplest possible form of units of interest specification with GPR facilities is a lone:

-P<myproject>.gpr

provided to both gnatcov instrument and gnatcov coverage. In the absence of coverage related attributes within the project file(s), this requests considering of interest all the units of <myproject> and its project dependency closure.

For gnatcov instrument, the source files containing main subprograms need to be encompassed by myproject.gpr and specified either by a Main project file attribute or provided on the command line, as for gprbuild commands.

Finer grain control is possible with additional switches and attributes, letting users first specify the set of projects of interest where the units of interest reside, then may filter the units of interest therein.

1.2.1.1. Conveying projects of interest

The set of projects of interest is computed by the following rules:

  • A set of base projects is first selected from the recursive dependency closure of a root project;

  • A set of candidate projects of interest is established, as the union of the dependency closures of all the base projects by default, or as the mere set of base projects alone if the --no-subprojects switch is used;

  • The actual projects of interest are the candidate ones minus those with an Externally_Built attribute set to "True".

For the determination of the base projects set, a single root project must first be specified using the -P option. The set may then be refined according to the following rules with an optional list of --projects switches naming projects within the dependency closure of the root:

  • Without --projects, the base projects set is the root project designated by -P alone, or the project designated by the Origin_Project attribute therein if there is such an attribute;

  • With --projects options, the listed projects are taken as the base and the root project needs to be listed as well to be included.

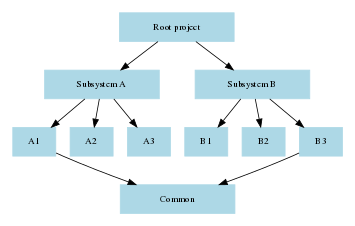

Let us illustrate the effect of various combinations, assuming an example project tree depicted below:

../_images/prjtree.png

Assuming none of the projects is flagged Externally_Built:

Projects with an Externally_Built attribute set to "True" are just removed from the set of interest at the end, without influencing the processing of dependency closures. In the last example above, if project A1 had the attribute set to "True", Common would remain of interest to the assessment even though it was dragged as a dependency of A1.

../_images/Proot-nosub.png

Fig. 1.3 -Proot --no-subprojects

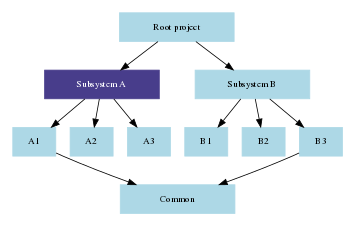

../_images/Proot-ss_a-nosub.png

Fig. 1.4 -Proot --projects=subsystem_a --no-subprojects

../_images/Proot-root-ss_a-nosub.png

Fig. 1.5 -Proot --projects=root --projects=ss_a --no-subprojects

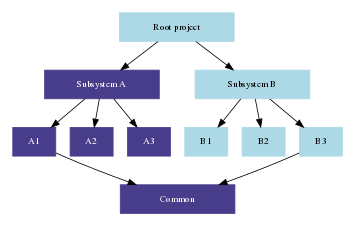

../_images/Proot-ss_a.png

Fig. 1.6 -Proot --projects=subsystem_a

1.2.1.2. Conveying units of interest within projects

By default, all the units encompassed by a project of interest are considered of interest. This can be tailored first with specific attributes in package Coverage of project files.

Four attributes are available to control the set of units to be considered of interest within a project: Units, Units_List, Excluded_Units, and Excluded_Units_List.

Units and Units_List are used to construct an initial set of units for which coverage analysis should be performed. For example, given a project with three packages Pak1, Pak2, and Pak3, if you want to do coverage analysis only for Pak1 and Pak3 you can specify:

package Coverage is
  for Units use ("pak1", "pak3"); -- pak1 and pak3 are of interest
end Coverage;

Similarily to Sources and Sources_List, the Units attribute specifies a set of units and Units_List specifies the name of a text file containing a list of units. See the Compilation unit vs source file names section for details how individual units should be denoted depending on the source language.

Excluded_Units and Excluded_Units_List operate like Units and Units_List but for units that should never be considered of interest for coverage. Back to our example, the same result as above is obtained by specifying:

package Coverage is
   for Excluded_Units use ("pak2");  -- all units except pak2 are of interest
end Coverage;

When the exclude/include sets overlap, the excluding attributes prevail over the including ones. The exact rules for computation of the units to be considered of interest within a project are as follows:

  • An initial set is determined using the Units and Units_List attributes in the project’s Coverage package; By default, if no such attribute is found, the initial set comprises all the units of the project,

  • Units determined using the Excluded_Units and Excluded_Units_List attributes are removed from the initial set to yield the set to consider.

Finally, the list of units of interest for a given execution of gnatcov can also be overriden from the command line using the --units switch. When this option is used, the project files attributes are ignored.

The switch may appear multiple times. Each occurrence indicates one unit to focus on, or with the @ syntax the name of a text file containing a list of units to focus on, one per line. The effect of multiple switches accumulate.

The effect of the example attributes provided previously could then first be achieved with:

gnatcov <command> -P... --units=pak1 --units=pak3

or by creating a units.list file with:

pak1
pak3

and then executing:

gnatcov <command> --units=@units.list

1.2.1.3. Conveying subprograms of interest (experimental)

gnatcov enables even finer grain control through the use of --subprograms switch, which restricts coverage analysis to the specified list of subprograms of interest.

The --subprograms switch expects a <filename>:<line> argument, where <filename> is a source file name path, absolute or relative to the current directory, pointing to the subprogram source and line is the first line of the subprogram specification in Ada, and the first line of the function definition in C/C++.

Every coverage obligation from non subprograms of interest is discarded and reported as no code in the various output formats, and the associated coverage data is ignored. This means that checkpoints will hold coverage data for subprograms of interest only.

The --subprograms switch acts only on subprograms within units of interest. If a unit was ignored for coverage analysis through a project attribute (e.g. Excluded_Units) or through a command line switch (e.g. --units), the designated subprogram will be ignored for coverage analysis as well.

1.2.1.4. Other switches or attributes of importance

Independently from coverage considerations, project files offer a significant range of possibilities to compose a software system. To get an accurate view of the set of projects and units from which those of interest to coverage should be taken, GNATcoverage needs to operate on the same base information as the builder.

To this effect, all the switches you would pass to gprbuild to control the build configuration should also be passed to GNATcoverage commands when conveying units of interest through project facilities, in particular --target, --RTS, --config switches very common in cross configurations, as well as the -X series setting scenarii variables.

In some cases, such as --target or --RTS, the effect of the command line switch can be achieved with a project file attribute, which GNATcoverage knows how to interepret as well.

1.2.2. Conveying source files to ignore / handling Ada subunits

Two attributes in the Coverage package make it possible to specify specific source file names for which the tool should not generate a report eventually, even if the these sources are within units of interest. This is intended for situations where the source files for a unit of interest encompass some of its testing sources, for example when parts of the testing code is implemented with separate subunits in Ada.

The dummy example below shows a possible organization of this kind, with a Data_Processing package to be tested which contains a Test procedure declared as a separate entity:

-- spec and body of a package to test

package Data_Processing is
   procedure Process (X : Integer);

   procedure Test;
end;

package body Data_Processing is

   Internal_Data : Integer := 0;

   procedure Process (X : Integer) is
   begin
      ...
   end;

   procedure Test is separate; -- subunit declaration here
end;

We can have different implementations of the Test subprogram body in different source files and a project file based mechanism to select one or the other based on a scenario variable:

-- data_processing-test1.adb; test variation #1

separate (Data_Processing)
procedure Test is
begin
   Process (X => 12);
   pragma Assert (Internal_Data > 0);
end;

-- data_processing-test2.adb; test variation #2

separate (Data_Processing)
procedure Test is
begin
   Process (X => -8);
   pragma Assert (Internal_Data < 0);
end;

-- Project file with a Body source file name selection in a
-- Naming project package:

project P is
  TEST := external ("TEST");
  package Naming is
    for Body ("data_processing.test") use "data_processing-" & TEST & ".adb";
  end Naming;
end P;

Then we can build one variant or the other with:

-- run_all.adb

with Data_Processing;
procedure Run_All is
begin
   Data_Processing.Test;
end;

$ gprbuild -Pp.gpr -XTEST=test1 run_all.adb
$ gprbuild -Pp.gpr -XTEST=test2 run_all.adb
...

As any testing code, such subunits usually need to be excluded from the coverage analysis scope. However, even though implemented in separate source files, subunits are technically not units on their own, so could not be excluded alone by the unit-based mechanisms presented in previous sections.

The two attributes introduced here allow the specification of file names to be ignored as a list of globbing patterns akin to those allowed in Unix shells. All source files whose base name matches any of the patterns are excluded from the analysis and from the output report. Since only base names are matched, the provided patterns to ignore should not include any path or directory component.

The first attribute, Ignored_Source_Files, expects a direct list of patterns. Even though intended for subunits, the attribute allows file names corresponding to regular units as well. For our dummy example, this could be:

package Coverage is
  for Ignored_Source_Files use ("*-test*.adb", "run_all.adb");
end Coverage;

The second one, Ignored_Source_Files_List, expects the name of a text file which contains the list of globbing patterns to ignore, one line per pattern.

To achieve the same effect as with the first attribute for our example, we could create a text file named ignore.list which would contain:

*-test.adb
run_all.adb

And then have:

package Coverage is
  for Ignored_Source_Files_List use "ignore.list";
end Coverage;

As a possible alternative to the project file attributes, the gnatcov coverage and gnatcov instrument commands accept a --ignore-source-files switch on the command line.

This option can appear multiple times on the command line. Each occurrence expects a single argument which is either a globbing pattern for the name of source files to ignore (as for a Ignored_Source_Files attribute), or a @listfile argument that contains a list of such patterns (as for a Ignored_Source_Files_List attribute), and the effects of all the options accumulate.

The example attributes provided previously would become:

gnatcov <command> --ignore-source-files=*-test.adb --ignore-source-files=run_all.adb

or:

gnatcov <command> --ignore-source-files=@ignore.list

When --ignore-source-files is provided on the command line, all the Ignored_Source_Files and Ignored_Source_Files_List attributes are ignored.

1.2.3. Compilation unit vs source file names

For Ada, explicit compilation unit names are given to library level packages or subprograms, case insensitive. This is what must be used in project file attributes or --units arguments to elaborate the set of units of interest, not source file names.

This offers a simple and consistent naming basis to users, orthogonal to the unit/source name mapping. Consider, for example, a project file with the set of declarations below, which parameterizes the source file name to use for the body of a Logger package depending on the kind of build performed:

type Build_Mode_Type is ("Production", "Debug");
Build_Mode : Build_Mode_Type := external ("BUILD_MODE", "Debug");

package Naming is
   case Build_Mode is
      when "Production" =>
         for Implementation ("Logger") use "production-logger.adb";
      when "Debug" =>
         for Implementation ("Logger") use "debug-logger.adb";
   end case;
end Naming;

Regardless of the build mode, restricting the analysis to the Logger package would be achieved with -P<project> --units=logger or with a Units attribute such as:

package Coverage is
   for Units use ("Logger"); -- compilation unit name here
end Coverage;

Source file names are used in the output reports, still, either in source location references as part of the =report outputs, or as the base filename of annotated source files for other formats. For our Logger case above, the analysis with, for example, --annotate=xcov of a program built in Debug mode would yield a debug-logger.adb.xcov annotated source result.

For C, the notion of translation unit resolves to the set of tokens that the compiler gets to work on, after the pre-processing expansion of macros, #include directives and the like. This doesn’t have an explicit name and units of interest must be designated by the toplevel source file names from which object files are produced.

Typically, from a sample foo.c source like:

#include "foo.h"

static int bar (void)
{ ... }

...
void foo (int x)
{ ... }

excluding foo.c from the analysis scope can be achieved with:

package Coverage is
   for Excluded_Units use ("foo.c"); /* source file name here  */
end Coverage;

1.2.4. Providing coverage obligation files (--sid)

With the --sid command line option, users can convey the set of units of interest by directly providing the set of files which contain the coverage obligations for those units.

One such file is produced for each unit instrumented by the gnatcov instrument command, next to the object file for a unit, with a .sid extension which stands for Source Instrumentation Data.

Each occurrence of --sid on the command line expects a single argument which specifies a set of units of interest. Multiple occurrences are allowed and the sets accumulate. The argument might be either the name of a single .sid file for a unit, or a @listfile arguments expected to contain a list of such file names.

For example, focusing on Ada units u1, u2 and u3 can be achieved with either --sid=u1.sid --sid=u2.sid --sid=u3.sid, with --sid=u3.sid --sid=@lst12 where lst12 is a text file containing the first two SID file names, or with other combinations alike.
