7.2. How to View GNATprove Output

GNATprove produces two kinds of outputs: the one which is echoed to standard output or displayed in your IDE (GPS or GNATbench), and the one which is produced in a file gnatprove.out, which lies in the gnatprove subdirectory of the object directory of your project.

When switch --output-header is used, this file starts with a header containing extra information about the run including:

  • The date and time of GNATprove run
  • The GNATprove version that has generated this report
  • The host for which GNATprove is configured (e.g. Windows 32 bits)
  • The full command-line of the GNATprove invocation, including project file
  • The GNATprove switches specified in the project file

7.2.1. The Analysis Results Summary Table

A summary table at the start of file gnatprove.out provides an overview of the verification results for all checks in the project. The table may look like this:

----------------------------------------------------------------------------------------------------------------
SPARK Analysis Results      Total        Flow   Interval                          Provers   Justified   Unproved
----------------------------------------------------------------------------------------------------------------
Data Dependencies               .           .          .                                .           .          .
Flow Dependencies               .           .          .                                .           .          .
Initialization               2100        2079          .                                .           .         21
Non-Aliasing                    .           .          .                                .           .          .
Run-time Checks               596           .          .    480 (altergo  31%, CVC4  69%)           .        116
Assertions                      3           .          .      3 (altergo  33%, CVC4  67%)           .          .
Functional Contracts          323           .          .    168 (altergo  24%, CVC4  76%)           .        155
LSP Verification                .           .          .                                .           .          .
----------------------------------------------------------------------------------------------------------------
Total                        3022  2079 (69%)          .                        651 (22%)           .   292 (9%)

The following table explains the lines of the summary table:

Line Description Explanation
Data Dependencies Verification of Data Dependencies and parameter modes
Flow Dependencies Verification of Flow Dependencies
Initialization Verification of Data Initialization Policy
Non-Aliasing Verification of Absence of Interferences
Run-time Checks Verification of absence of run-time errors (AoRTE) (except those raising Storage_Error)
Assertions Verification of Assertion Pragmas
Functional Contracts Verification of functional contracts (includes Subprogram Contracts, Package Contracts and Type Contracts)
LSP Verification Verification related to Object Oriented Programming and Liskov Substitution Principle

We now explain the columns of the table.

  • The Total column describes the total number of checks in this category.
  • The Flow column describes the number of checks proved by flow analysis.
  • The Interval column describes the number of checks (overflow and range checks) proved by a simple static analysis of bounds for floating-point expressions based on type bounds of sub-expressions.
  • The Provers column describes the number of checks proved by automatic or manual provers. The column also gives information on the provers used, and the percentage of checks proved by each prover. Note that sometimes a check is proved by a combination of provers, hence the use of percentage instead of an absolute count. Also note that generally the prover which is run first (as determined by the --prover command line switch) proves the most checks, because each prover is called only on those checks that were not previously proved. The prover percentages are provided in alphabetical order.
  • The Justified column contains the number of checks for which the user has provided a Direct Justification with Pragma Annotate.
  • Finally, the column Unproved counts the checks which have neither been proved nor justified.

7.2.2. Categories of Messages

GNATprove issues four different kinds of messages: errors, warnings, check messages and information messages.

  • Errors are issued for SPARK violations or other language legality problems, or any other problem which does not allow to proceed to analysis. Errors cannot be suppressed and must be fixed to proceed with analysis.
  • Warnings are issued for any suspicious situation like unused values of variables, useless assignements, etc. Warnings are prefixed with the text "warning: " and can be suppressed with pragma Warnings, see section Suppressing Warnings.
  • Check messages are issued for any potential problem in the code which could affect the correctness of the program, such as missing initialization, possible failing run-time checks or unproved assertions. Checks come with a severity, and depending on the severity the message text is prefixed with "low: ", "medium: " or "high: ". Check messages cannot be suppressed like warnings, but they can be individually justified with pragma Annotate, see section Justifying Check Messages.
  • Information messages are issued to notify the user of limitations of GNATprove on some constructs, or to prevent possible confusion in understanding the output of GNATprove. They are also issued to report proved checks in some modes of GNATprove.

7.2.3. Effect of Mode on Output

GNATprove can be run in four different modes, as selected with the switch --mode=<mode>, whose possible values are check, check_all, flow, prove and all (see Running GNATprove from the Command Line). The output depends on the selected mode.

In modes check and check_all, GNATprove prints on the standard output a list of error messages for violations of SPARK restrictions on all the code for which SPARK_Mode is On.

In modes flow and prove, this checking is done as a first phase.

In mode flow, GNATprove prints on the standard output messages for possible reads of uninitialized data, mismatches betwen the specified data dependencies and flow dependencies and the implementation, and suspicious situations such as unused assignments and missing return statements. These messages are all based on flow analysis.

In mode prove, GNATprove prints on the standard output messages for possible reads of uninitialized data (using flow analysis), possible run-time errors and mismatches between the specified functional contracts and the implementation (using proof).

In mode all, GNATprove prints on the standard output both messages for mode flow and for mode prove.

If switch --report=all, --report=provers or --report=statistics is specified, GNATprove additionally prints on the standard output information messages for proved checks.

GNATprove generates global project statistics in file gnatprove.out, which can be displayed in GPS using the menu SPARK ‣ Show Report. The statistics describe:

  • which units were analyzed (with flow analysis, proof, or both)
  • which subprograms in these units were analyzed (with flow analysis, proof, or both)
  • the results of this analysis

7.2.4. Description of Messages

This section lists the different messages which GNATprove may output. Each message points to a very specific place in the source code. For example, if a source file file.adb contains a division as follows:

if X / Y > Z then ...

GNATprove may output a message such as:

file.adb:12:37: medium: divide by zero might fail

where the division sign / is precisely on line 12, column 37. Looking at the explanation in the first table below, which states that a division check verifies that the divisor is different from zero, it is clear that the message is about Y, and that GNATprove was unable to prove that Y cannot be zero. The explanations in the table below should be read with the context that is given by the source location.

When switch --cwe is used, a corresponding CWE id is included in the message when relevant. For example, on the example above, GNATprove will output a message such as:

file.adb:12:37: medium: divide by zero might fail [CWE 369]

Note that CWE ids are only included in check messages and warnings, never in information messages about proved checks. For more information on CWE, see the MITRE Corporation’s Common Weakness Enumeration (CWE) Compatibility and Effectiveness Program (http://cwe.mitre.org/).

The following table shows the kinds of check messages issued by proof.

Message Kind CWE Explanation
run-time checks
divide by zero CWE 369 Check that the second operand of the division, mod or rem operation is different from zero.
index check CWE 120 Check that the given index is within the bounds of the array.
overflow check CWE 190 Check that the result of the given integer arithmetic operation is within the bounds of the base type.
fp_overflow check CWE 739 Check that the result of the given floating point operation is within the bounds of the base type.
range check CWE 682 Check that the given value is within the bounds of the expected scalar subtype.
predicate check CWE 682 Check that the given value respects the applicable type predicate.
predicate check on default value CWE 682 Check that the default value for the type respects the applicable type predicate.
invariant check   Check that the given value respects the applicable type invariant.
invariant check on default value   Check that the default value for the type respects the applicable type invariant.
length check   Check that the given array is of the length of the expected array subtype.
discriminant check CWE 136 Check that the discriminant of the given discriminated record has the expected value. For variant records, this can happen for a simple access to a record field. But there are other cases where a fixed value of the discriminant is required.
tag check CWE 136 Check that the tag of the given tagged object has the expected value.
ceiling priority in Interrupt_Priority   Check that the ceiling priority specified for a protected object containing a procedure with an aspect Attach_Handler is in Interrupt_Priority
interrupt is reserved   Check that the interrupt specified by Attach_Handler is not reserved
ceiling priority protocol   Check that the ceiling priority protocol is respected, i.e., when a task calls a protected operation, the active priority of the task is not higher than the priority of the protected object (ARM Annex D.3)
task termination   Check that the task does not terminate, as required by Ravenscar

assertions
initial condition   Check that the initial condition of a package is true after elaboration.
default initial condition   Check that the default initial condition of a type is true after default initialization of an object of the type.
precondition   Check that the precondition aspect of the given call evaluates to True.
call to nonreturning subprogram   Check that the call to a subprogram called in case of error is unreachable.
precondition of main   Check that the precondition aspect of the given main procedure evaluates to True after elaboration.
postcondition   Check that the postcondition aspect of the subprogram evaluates to True.
refined postcondition   Check that the refined postcondition aspect of the subprogram evaluates to True.
contract case   Check that all cases of the contract case evaluate to true at the end of the subprogram.
disjoint contract cases   Check that the cases of the contract cases aspect are all mutually disjoint.
complete contract cases   Check that the cases of the contract cases aspect cover the state space that is allowed by the precondition aspect.
loop invariant in first iteration   Check that the loop invariant evaluates to True on the first iteration of the loop.
loop invariant after first iteration   Check that the loop invariant evaluates to True at each further iteration of the loop.
loop variant CWE 835 Check that the given loop variant decreases/increases as specified during each iteration of the loop. This implies termination of the loop.
assertion   Check that the given assertion evaluates to True.
raised exception   Check that the raise statement can never be reached.

Liskov Substitution Principle
precondition weaker than class-wide precondition   Check that the precondition aspect of the subprogram is weaker than its class-wide precondition.
precondition not True while class-wide precondition is True   Check that the precondition aspect of the subprogram is True if its class-wide precondition is True.
postcondition stronger than class-wide postcondition   Check that the postcondition aspect of the subprogram is stronger than its class-wide postcondition.
class-wide precondition weaker than overridden one   Check that the class-wide precondition aspect of the subprogram is weaker than its overridden class-wide precondition.
class-wide postcondition stronger than overridden one   Check that the class-wide postcondition aspect of the subprogram is stronger than its overridden class-wide postcondition.

The following table shows all flow analysis messages, (E)rrors, (W)arnings and (C)hecks.

Message Kind Class CWE Explanation
aliasing E   Two formal or global parameter are aliased.
function with side effects E   A function with side effects has been detected.
cannot depend on variable E   Certain expressions (for example: discriminant specifications and component declarations) need to be variable free.
missing global E   Flow analysis has detected a global that was not mentioned on the Global or Initializes aspects
must be a global output E   Flow analysis has detected an update of an in mode global.
pragma Elaborate_All needed E   A remote state abstraction is used during the package’s elaboration. Elaborate_All required for the remote package.
export must not depend on Proof_In E   Flow analysis has detected an output of a subprogram that depends on a constant which is marked Proof_In.
class-wide mode must also be a class-wide mode of overridden subprogram E   Miss-match between Global contracts of overridding and overridden subprograms.
class-wide dependency is not class-wide dependency of overridden subprogram E   Miss-match between Depends contracts of overridding and overridden subprograms.
volatile function E   A nonvolatile function may not have a volatile global.
tasking exclusivity E   No two tasks may suspend on the same protected object or the same suspension object.
tasking exclusivity E   No two tasks may read and write from the same unsynchronized object.
missing dependency C   A dependency is missing from the dependency relation.
dependency relation C   An out parameter or global is missing from the dependency relation.
missing null dependency C   A variable is missing from the null dependency.
incorrect dependency C   A stated dependency is not fulfilled.
not initialized C CWE 457 Flow analysis has detected the use of an uninitialized variable.
initialization must not depend on something C   Wrong Initializes aspect detected.
type is not fully initialized C CWE 457 A type promised to be default initialized but is not.
needs to be a constituent of some state abstraction C   Flow analysis detected a constituent that has to be exposed through some state abstraction.
constant after elaboration C   An object which is constant after elaboration must not be changed after elaboration and as such cannot be the output of any subprogram.
is not modified W   The variable is declared with mode in out, but is never modified, so could be declared with mode in.
unused assignment W CWE 563 Flow analysis has detected an assignment to a variable which is not read after the assignment.
initialization has no effect W CWE 563 Flow analysis has detected an object which is initialized, but never read.
this statement is never reached W CWE 561 This statement will never be executed (dead code).
statement has no effect W   Flow analysis has detected a statement which has no effect.
unused initial value W CWE 563 An in or in out parameter or global has been found which does not have any effect on any out or in out parameter or global.
unused W CWE 563 A global or locally declared variable is never used.
missing return W   A return statement seems to be missing from the function.
no procedure exists that can initialize abstract state W   Flow analysis detected a state abstraction that is impossible to initialize.
subprogram has no effect W   A subprogram that has no exports has been detected.
volatile function E   A volatile function that has no volatile globals does not have to be a volatile function.

Note

Certain messages emitted by flow analysis are classified as errors and consequently cannot be suppressed or justified.

7.2.5. Understanding Counterexamples

When a check cannot be proved, GNATprove may generate a counterexample. A counterexample consists in two parts:

  • a path (or set of paths) through the subprogram
  • an assignment of values to variables that appear on that path

The best way to look at a counterexample is to display it in GPS by clicking on the icon to the left of the failed proof message, or to the left of the corresponding line in the editor (see Running GNATprove from GPS). GNATprove then displays the path in one color, and the values of variables on the path by inserting lines in the editor only (not in the file) which display these values. For example, consider procedure Counterex:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
procedure Counterex (Cond : Boolean; In1, In2 : Integer; R : out Integer) with
  SPARK_Mode,
  Pre => In1 <= 25 and In2 <= 25
is
begin
   R := 0;
   if Cond then
      R := R + In1;
      if In1 < In2 then
         R := R + In2;
         pragma Assert (R < 42);
      end if;
   end if;
end Counterex;

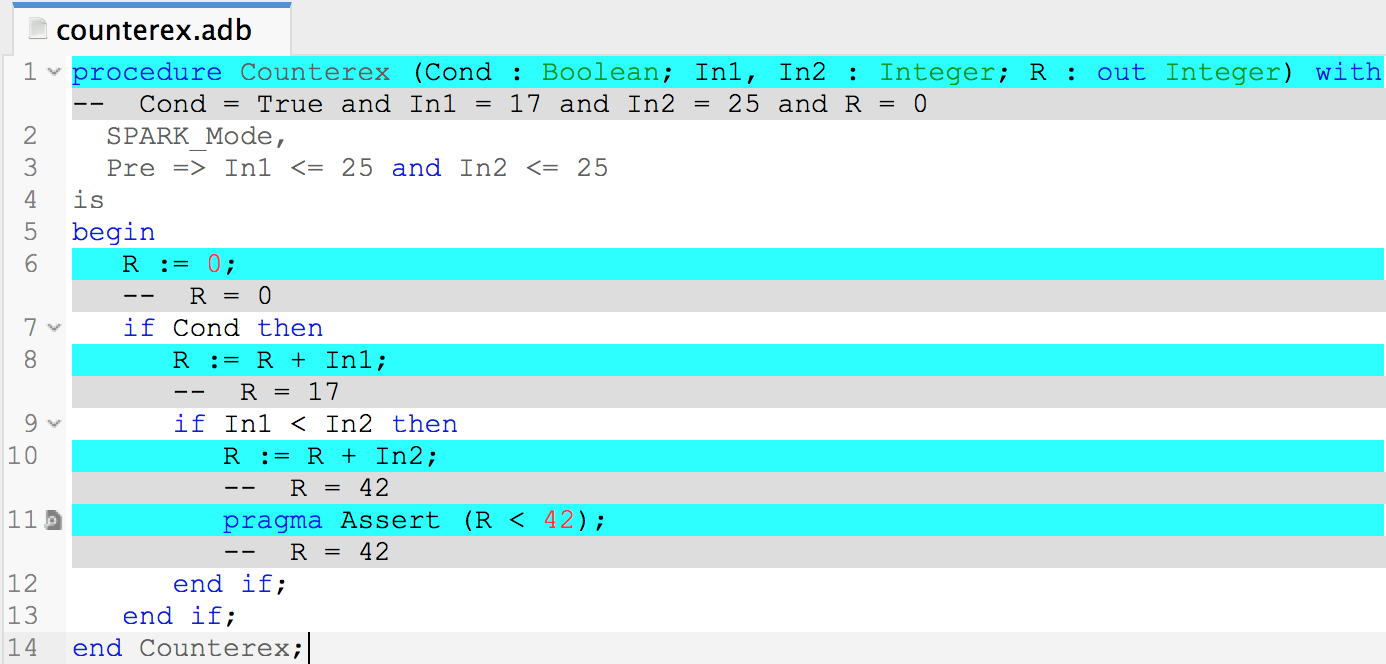

The assertion on line 11 may fail when input parameter Cond is True and input parameters I1 and I2 are too big. The counterexample generated by GNATprove is displayed as follows in GPS, where each line highlighted in the path is followed by a line showing the value of variables from the previous line:

Counterexample in GPS

GNATprove also completes the message for the failed proof with an explanation giving the values of variables from the checked expression for the counterexample. Here, the message issued by GNATprove on line 11 gives the value of output parameter R:

counterex.adb:11:25: medium: assertion might fail, cannot prove R < 42 (e.g. when R = 42)

The counterexample generated by GNATprove does not always correspond to a feasible execution of the program:

  1. When some contracts or loop invariants are missing, thus causing the property to become unprovable (see details in section on Investigating Unprovable Properties), the counterexample may help point to the missing contract or loop invariant. For example, the postcondition of procedure Double_In_Call is not provable because the postcondition of the function Double that it calls is too weak, and the postcondition of procedure Double_In_Loop is not provable because its loop does not have a loop invariant:

     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    package Counterex_Unprovable with
      SPARK_Mode
    is

       type Int is new Integer range -100 .. 100;

       function Double (X : Int) return Int with
         Pre  => abs X <= 10,
         Post => abs Double'Result <= 20;

       procedure Double_In_Call (X : in out Int) with
         Pre  => abs X <= 10,
         Post => X = 2 * X'Old;

       procedure Double_In_Loop (X : in out Int) with
         Pre  => abs X <= 10,
         Post => X = 2 * X'Old;

    end Counterex_Unprovable;

     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    package body Counterex_Unprovable with
      SPARK_Mode
    is

       function Double (X : Int) return Int is
       begin
          return 2 * X;
       end Double;

       procedure Double_In_Call (X : in out Int) is
       begin
          X := Double (X);
       end Double_In_Call;

       procedure Double_In_Loop (X : in out Int) is
          Result : Int := 0;
       begin
          for J in 1 .. 2 loop
             Result := Result + X;
          end loop;
          X := Result;
       end Double_In_Loop;

    end Counterex_Unprovable;


    The counterexample generated by GNATprove in both cases shows that the prover could deduce wrongly that X on ouput is -3 when its value is 1 on input, due to a missing contract in the function called or a missing loop invariant the loop executed:

    counterex_unprovable.adb:7:16: info: overflow check proved
    counterex_unprovable.adb:7:16: info: range check proved
    counterex_unprovable.adb:12:12: info: precondition proved
    counterex_unprovable.adb:19:20: info: initialization of "Result" proved
    counterex_unprovable.adb:19:27: info: range check proved
    counterex_unprovable.adb:21:12: info: initialization of "Result" proved
    counterex_unprovable.ads:8:14: info: overflow check proved
    counterex_unprovable.ads:9:14: info: overflow check proved
    counterex_unprovable.ads:9:14: info: postcondition proved
    counterex_unprovable.ads:12:14: info: overflow check proved
    counterex_unprovable.ads:13:14: medium: postcondition might fail, cannot prove X = 2 * X'old (e.g. when X = -3 and X'Old = -1)
    counterex_unprovable.ads:13:20: info: overflow check proved
    counterex_unprovable.ads:16:14: info: overflow check proved
    counterex_unprovable.ads:17:14: info: postcondition proved
    counterex_unprovable.ads:17:20: info: overflow check proved

  2. When some property cannot be proved due to prover shortcomings (see details in section on Investigating Prover Shortcomings), the counterexample may explain why the prover cannot prove the property. However, note that since the counterexample is always generated only using CVC4 prover, it can just explain why this prover cannot prove the property. Also note that if CVC4 is not selected and generating of a counterexample is not disabled by --no-counterexample switch, a counterexample is still attempted to be generated using CVC4, but the proof result of CVC4 is not taken into account in this case.

  3. When using a short value of timeout or steps, the prover may hit the resource bound before it has produced a full counterexample. In such a case, the counterexample produced may not correspond to a feasible execution.

  4. When the value of --proof switch is per_check (the default value), then the counterexample gives values to variables on all paths through the subprogram, not only the path which corresponds to the feasible execution. One can rerun GNATprove with value progressive or per_path to separate possible execution paths in the counterexample.
