GNAT Studio 20 Release Notes

Release Date: October 2019

The first GNAT Studio development cycle was mainly focused on improving source navigation and stability.

Debugger

The UI freeze that could occur when lauching a debug session on big executables no longer exists: the UI is now perfectly responsive during GDB’s “load” command.

Breakpoints are now correctly saved across debug sessions, even when some of them were not recognized with the loaded executable.

Projects Support

The Scenario view Apply and Discard buttons have been moved to the sidebar.

_images/scenario_view.png

It’s also possible to activate/deactivate the display of untyped scenario variables. This is done via the local configuration menu (hamburger menu) of the view.

The user experience when opening an erroneous project has been improved too: an editor issues opened for the project file that contains errors, allowing the user to modify it directly and reload it via the Project view after correcting it.

Version Control

Many improvements have been made regarding the new Version Control System engine, in particular regarding the ClearCase support. As a result, the old Version Control System (VCS1) has been completely removed from GNAT Studio. As a result, the GPS.INTERNAL.MODULE_VCS trace (corresponding to the old engine) has been removed and the GPS.INTERNAL.MODULE_VCS2 trace (corresponding to the new engine) has been renamed to GPS.MODULE.VCS. You can disable the GPS.MODULE.VCS trace if you want to disable completely the VCS support from GNAT Studio.

The diff viewer has also been improved, and clicking in a specific commit from the History view will open a separate editor to view the associated diff.

Tooltips that indicate the Commit-Id, Author, Date and Subject data have also been added and the overall performance of the view has been increased by loading asynchrounously the commits.

Omnisearch

Annoying bugs have been resolved regarding the omni-search. In particular, the omni-search results window now disappears as soon as the focus leaves the GNAT Studio main window.

Moreover, the progress bar counting has been fixed when the include all files from source dirs option is disabled.

The performance has also been improved when searching through file names on networked filesystems or on slow local disks.

Source Editor

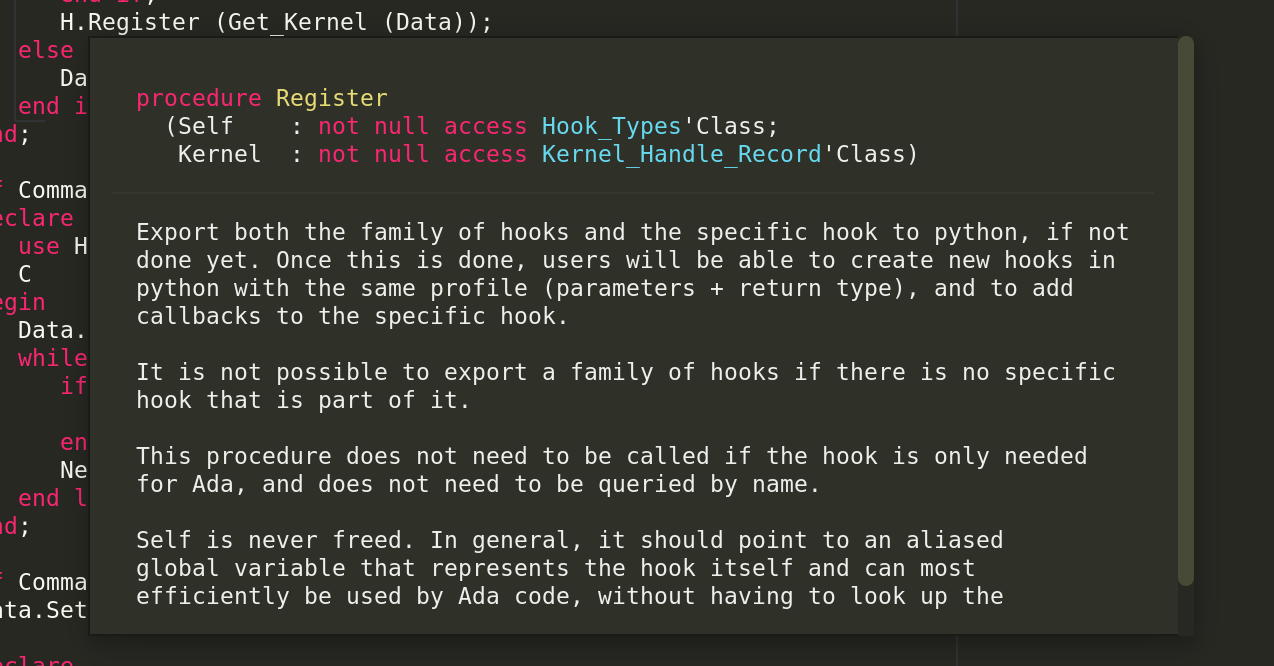

Source editor tooltips have been revamped completely and are now also based on the Microsoft Language Server Protocol.

Hovering on a given Ada entity now displays the corresponding declaration code, without any formatting. The declaration code is highlighted and the associated comments are displayed right under. Tooltips have also been made scrollable to avoid having giant tooltips when the associated comments are very long.

_images/editor_tooltips.png

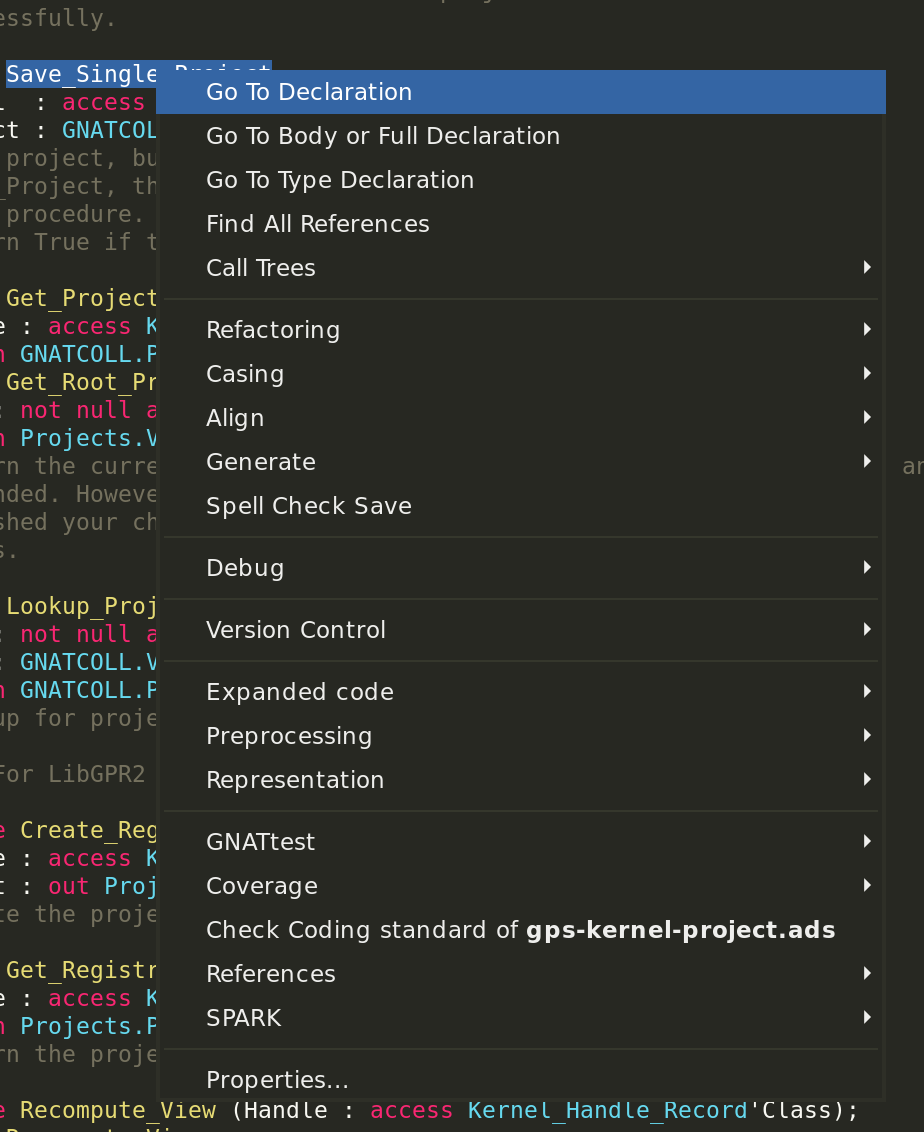

Contextual menus have been completely revamped for GNAT Studio: proper groups have been introduced as well as separators to clearly separate them.

_images/contextual_menus.png

Several new actions have been introduced to help developers.

A new strip trailing blanks action has been introduced to strip trailing spaces in the current editor.

GNAT Studio now also offers the possibility to fold/unfold all the blocks that are similar to the current one (e.g: fold all the “if” blocks when the cursor is on one of them) via the fold/unfold similar blocks actions.

A new plugin has been added to display the to compute and display the representation clauses in the editor. The plug-in is using the json output of gnatR, therefore a compiler version 20+ is needed.

Miscellaneous UI/UX improvements

It is now possible to open a file by double-clicking on the corresponding row in the Locations view.

GNAT Studio now displays a confirmation dialog before executing the generate body and generate body as separate actions.

The Refill action now works in project files, in the same way as Ada source files.

New Open folder and Open containing folder contextual menus have been added for the Project and Files views.

GPS Customization

Python API

the GPS.Entity class is now obsolete by default. This is due to the fact that GNAT Studio does not use anymore the gnatinspect database to provide cross-references.

More information on how to transition your custom plugins that use this GPS.Entity class to GNAT Studio can be found in the GNAT Studio User’s Guide, in the 20. How to transition from GPS to GNAT Studio section.
